1.2m Board Making Embossing Machine Hangzhou Manufacturer
Embossing Machine, Hydraulic Crimping Machine, Plate Crimping Machine
Description
Basic Info
- Model NO.: Embossing Machine
- Power Source: Electric
- Material Spec: Galvanized Steel and Carbon Steel;
- Main Motor Power: 4 Kw;
- Steps of Rollers: 16 Stands/Pairs to Form (Subject to Final Design);
- Yield Stress: 235 MPa~550MPa;
- Hydraulic Uncoiler: Max. Capacity: 3,000kgs;
- Trademark: WILLINGIN′T
- Specification: CE& ISO9001
- Customized: Customized
- Automatic Grade: Automatic
- Thickness: 0.8~1.2mm;
- Hydraulic Station Power: 3 Kw;
- Web Size: 35/20mm;
- Roll Forming Speed: 12~15 M/Min.;
- Type of Cutting: Stop to Cutting, Post Cut, No Blanking Cut.
- Transport Package: Wooden Cases
- Origin: China
Product Description

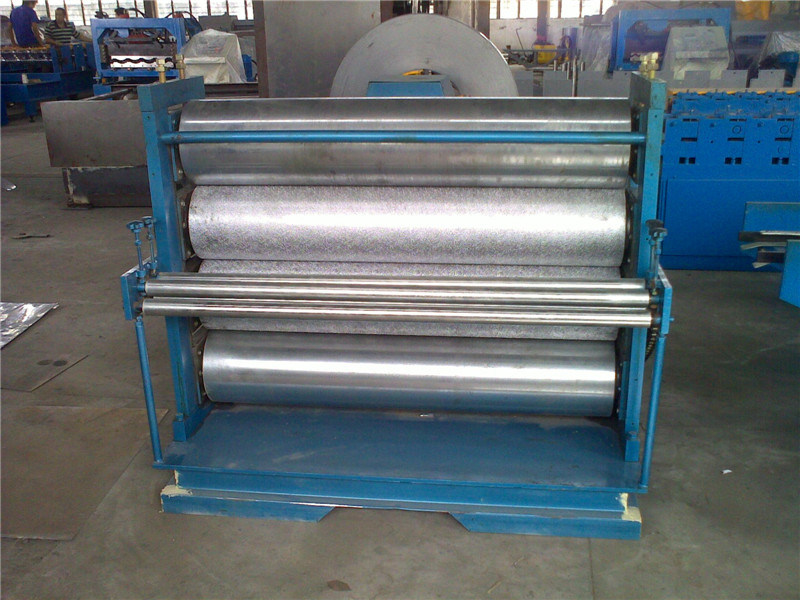

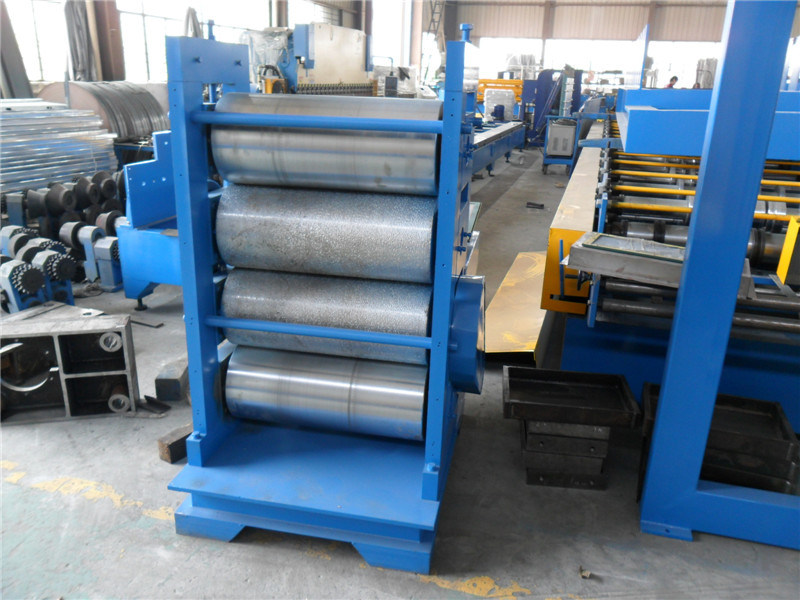

High Quality Embossing Machine
Components for the Machine
The roll forming machine includes 3tons manual uncoiler unit, sheet guiding equipment, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
The roll forming machine includes 3tons manual uncoiler unit, sheet guiding equipment, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
- Material of Main Equipment
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Diameter of shaft is 76mm.
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements are from famous suppliers of China.
Cutter Blade Cr12MoV steel , quenched treatment, hardness HRC58~61,wear-resistance
Punching Die Cr12 mould steel with quenching treatment.
Uncoiling the sheet ---- Sheet guiding ---- Pre-punching ---- Roll forming ---- Cutting ---- Panels to the supporter.
Standard Equipment of Machine
Manual Uncoiler, 3tons 1set
Infeed Guide 1set
Hole Punching Device 1set
Roll Forming Station 1set
Cutting Device 1set
Hydraulic Station 1pc
PLC Control Console 1pc
Product Support Table 2pcs
Other spare parts several
About the machine,we need you to provide us informaton.
1. profile drawing and size of product (model),
2. steel thickness range,
3. coil width,
4. steel stress,
5. requirements for configuration.
For price and other details, we welcome you to inquire us
